Photo box model "All in one"

1 closed system which can also be rented without being provided.

2 Integrated high-performance printer for optimal results

3 Shaped, floating acrylic collecting tray for prints up to 15 × 20 cm

4 Extremely stable substructure variants

5 Best green screen release on the market

6 Can be easily transported, set up and dismantled by one person

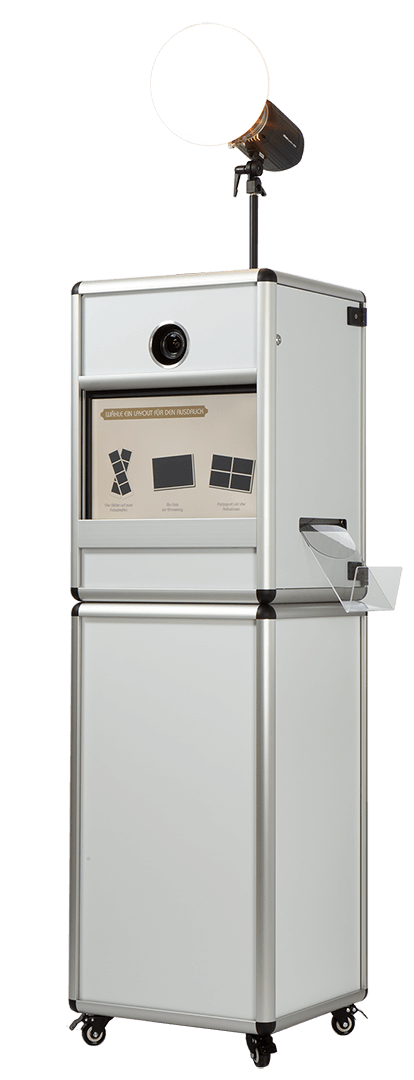

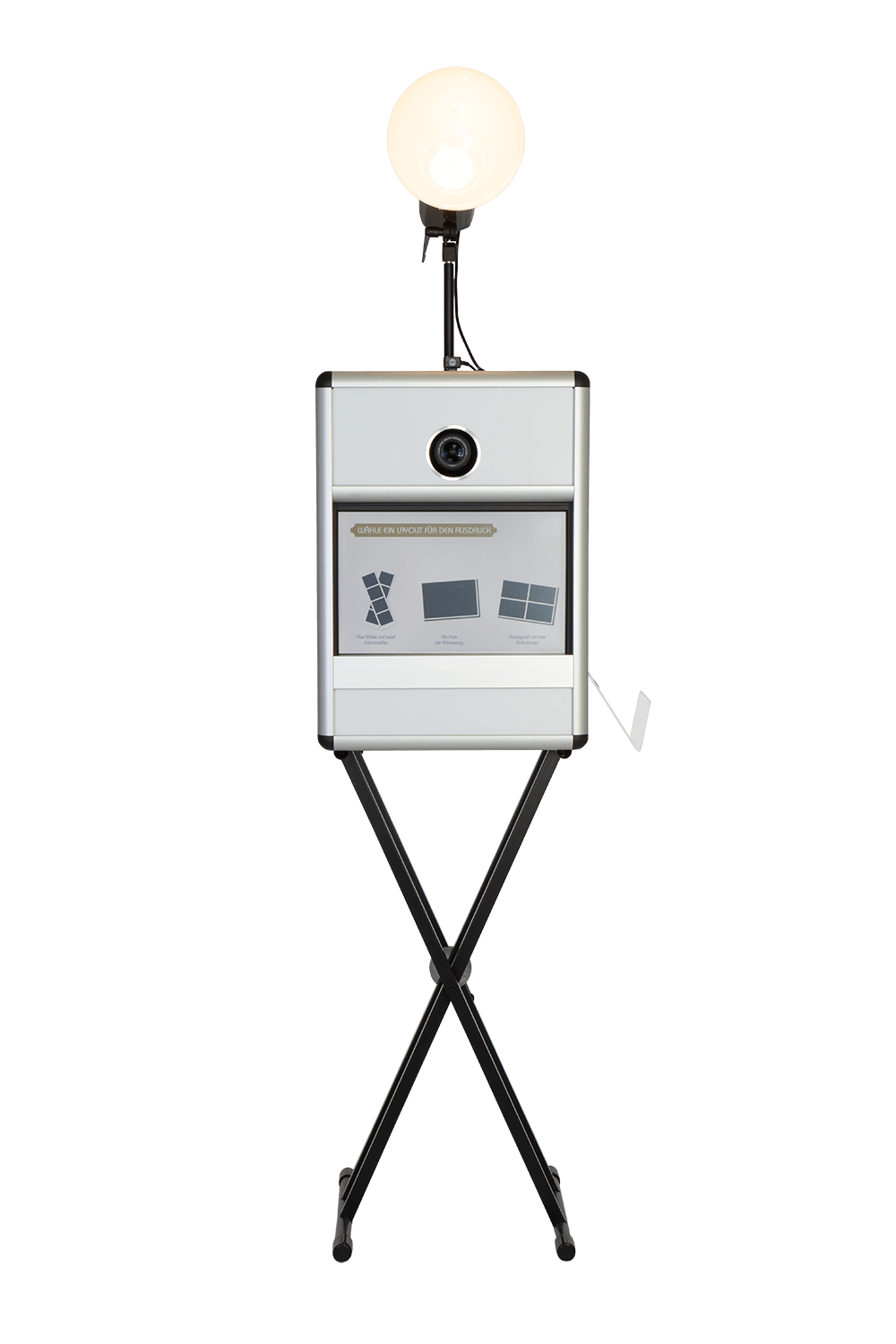

All-in-one photobooth with space for DNP DS-620 printer

The Photo box model "All-in-One" is intended for everyone who uses the photobooth too without personal care want to leave it at the event. By the space for one DNP DS-620 printer everything is in one lockable housing accommodated.
On the right side of the photobooth there is an ejection slot for the prints. A shapely collecting tray for prints up to 15 × 20 cm made of acrylic glass is included.
A practical silent 140 mm fan is incorporated in the roof of the Photobooth to reliably transport the warm exhaust air away through an intelligent circulation system.

The functional scope is with the Model "Travelbooth" identical.

On the touchscreen the user of the photobooth can all be released Use functions without restriction.

For example:

  • choose between different print layouts and sizes
  • an older photo can be reprinted using the RePrint function
  • Direct sending via email and SMS is possible
  • out different green screen backgrounds to be chosen
  • biometric passport photos can be created
  • the images can be GDPR compliant in an offline or Online Gallery be made available for download
  • Slowmotion (SlowMo) Videobooth can be used with the Canon M50 camera
  • Animated GIFs are generated as a result of each sequence
  • and much more…

Designation:
Photobox All-in-One

Dimensions:
68 cm high / 49 cm wide / 46 cm deep

Mass:
approx. 23 kg (without printer, camera and flash)

Monitor:
19 ″ touchscreen (1440x900px) in industrial quality

Camera height:
about 155 cm

PC unit:

  • Chipset: System-on-a-Chip (SoC)
  • CPU: Intel NUC I3 of the current generation (upgrade to I7 possible for a surcharge)
  • RAM: 4 GB
  • Hard drive: 120 GB SSD
  • Connections: 6x USB, 1x Gbit LAN, card reader (microSD / microSDHC / microSDXC), 1x audio jack
  • Wireless: WLAN 802.11a / b / g / n / ac, Bluetooth

Keyboard:
Logitech K400 wireless keyboard with trackpad

Software:

Camera Preparation:
Ball head for mounting a suitable Canon DSLR or M50 camera

Note on camera selection:
If the use as SlowMotion Videobooth considered, so I advise the Canon M50 with 15-45 mm lens. Otherwise, the Canon 200D is currently the best photobooth camera.

Lightning Preparation:

  • Lightning rod with spigot to attach a studio flash on the roof of the Photobooth

Note on the flash selection:
The use of a system flash with continuous power supply in the photo box is strongly discouraged. See blog by Innovatronix
http://www.innovatronix.com/index.php/component/k2/item/238-customer-service-advisory-june-2012-tronix-speedfire-product-advisory

The advantages of the TTL automatic exposure may sound seductive, but in practice the results vary considerably. If the bride in the light dress is in a picture with her bridesmaids, this will be underexposed. If, on the other hand, the groom is in the picture with his boys in a dark suit, the faces will be much too bright, as the TTL automatic determines an average value and accordingly adjusts the flash output.

functionality:

  • Photo Booth
  • video Booth
  • Green screen / blue screen photography
  • E-mail delivery directly in the Photoboothworkflow
  • Direct image upload via FTP to a gallery
  • Individual QR code on each printout that directly links to the respective image in the optional DSGVO online gallery
  • Completely freely configurable layouts for the saved or printed photos and the flow screens that the guest sees

Photobooth quality - Made in Germany

For more than 10 years, the company Photobooth-Deluxe has been gaining experience with various photobooth systems. All of our photobooth systems are produced and set up "Made in Germany".
